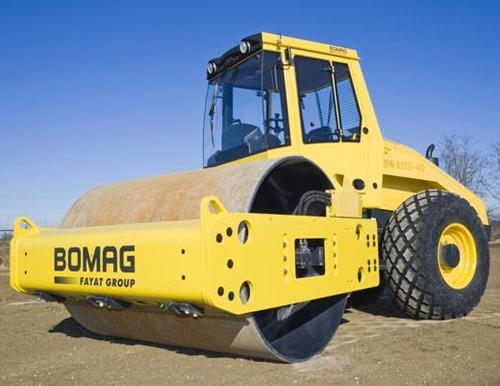

Bomag BW211D-40, BW212D-40, BW213D-40 service training manual.
Table of contents:
Foreword A 1
Documentation A 2
General A 3
Novelties
Technical data and adjustment values B 1
Maintenance C1
Maintenance chart C2
DEUTZ diesel engine D 1
Operating side D 2
Exhaust side D 3
Lubrication oil circuit D 4
Fuel circuit D 5
Checking and adjusting the valve clearance D 6
Assembly of plug-type injection pump D 8
Test and adjustment points D16
Travel system E 1
Travel pump E 3
Control E 6
Charge pressure relief valve E 11
High pressure relief valve E 12
Pressure override E 14
Axle drive motor E 16
Drum drive motor E 20
Test and adjustment points, travel system E 25
Trouble shooting in travel system E 29
Vibration F 1
Vibration pump F 3
High pressure relief valves F 6
Control F 7
Charge pump F 8
Vibration motor F 9
Drum F 12
Test and adjustment points, vibration system F 14
Trouble shooting in vibration system F 16
Steering G 1
Steering pump(s) G 2
Steering valve G 4
Articulated joint G 6
Measuring and adjustment points G 8
Trouble shooting steering system G 9
Electrics H 1
Wiring diagram
Hydraulic diagram

---
